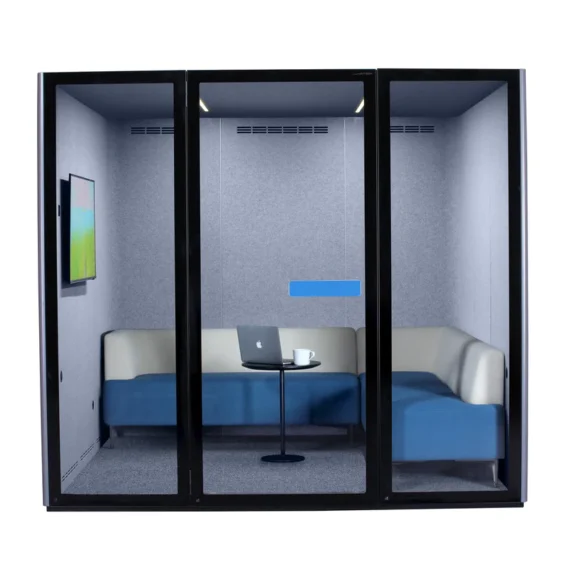

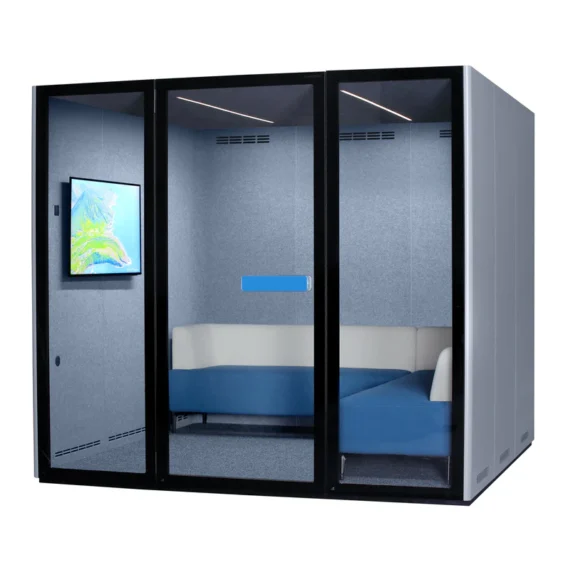

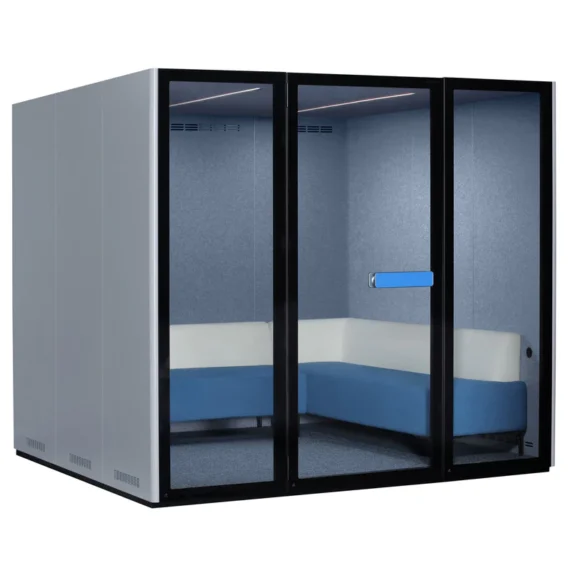

C-POD 1-5 PERSON SQUARE POD SERIES 2

The Series 2 M PODis designed to fit up to 7 people. It’s comfortable and well-ventilated space can help users to increase work
efficiency and productivity.
3 selections of furnishing layout are available, (A) Bare Unit, (B) L-Shaped Sofa & (C) Meeting Table with integrated charging ports.
A video screen can be mounted on the wall above.
Power and connectivity are seamless, with continuous power supply for your gadgets and direct connection to your office network.
The desktop provides space for a laptop or a screen can be mounted on the wall above.

OVERALL SIZE; 2400 x 2400 X 2180h  Net Weight = 893kg

  • HEPA Filter – Standard
  • Magnetic self closing rubber door seal technology
  • Automatic self closing door
  • UL Greenguard certified
Categories: ,

Description

Technical Specifications:

  • Airflow: Advanced air purification with HEPA filtration – 3 Sets of HEPA filters.Electric Cross flow fans– 37 air changes per hour
  • DDA Access: Inapod Access pods are available to comply with AS 1428.1 Design for Access & Mobility

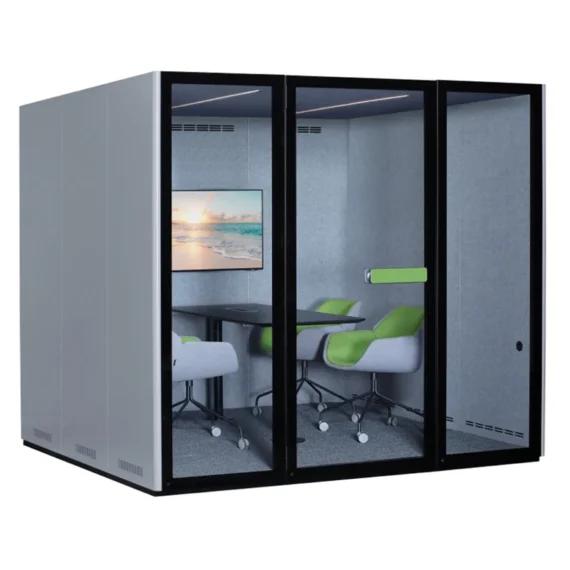

  • Meeting Pod: Boardroom table size 2200 x 750 x 25mm
  • ‘L’ Lounge Pod: A ‘L’ shaped sofa is available for this model
  • Auto Door: Automatic self closing door

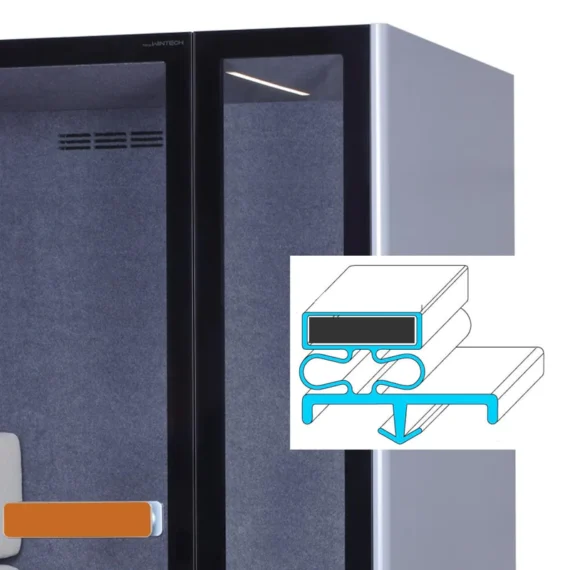

  • Door Seal: Magnetic self closing rubber door seal technology
  • Handle: Redesigned elegant front handle
  • Sprinkler: Provision for a fire sprinkler head if required with a knock-out hole in the ceiling
  • Door:10mm double laminated glass door
  • Outlets:Bare Pod = 2 x A/C power, 1 x USB-Type C & Cat 6 charging ports
    Meeting Pod = 2 x A/C power, 1 x USB-Type A & Cat 6 + HDMI & Audio Jack
    Sofa Pod = 2 x A/C power & 1 x USB-Type C
  • Lighting 18W 12Vdc recessed LED strip with dimmer
  • AcousticsHigh acoustic rating – beautifully designed using carefully selected materials with the best absorption & isolation performance. Weighted Level Difference 28.3dB
  • Exterior Materials: Structural strength wall detail: Electro galvanised 1.2mm thick steel – All structural steel construction
  • Interior Materials: Fire-rated and tested fabric materials – electro-galvanized 1.2mm thick steel with fire rated acoustic board
  • Sensor:All power functions are activated by an energy-saving motion sensor with auto turn-off after 5 minutes of inactivity
  • Environment:UL Greengard certified
  • Mobility:Nil
  • Lockable:Electric lockable door accessed by Q-code and app. (Option)
  • Power:Power is connected using a standard wall mounted 240V GPO
  • Weight:967kg




C-POD 1-5 PERSON SQUARE POD SERIES 2 - office furniture


C-POD 1-5 PERSON SQUARE POD SERIES 2 - office furniture


C-POD 1-5 PERSON SQUARE POD SERIES 2 - office furniture


C-POD 1-5 PERSON SQUARE POD SERIES 2 - office furniture


C-POD 1-5 PERSON SQUARE POD SERIES 2 - office furniture

External Dimensions:   2400 x 2400 x 2180 high

Shipping Dimensions:

1 x 1220 x 2440 x 1148H (3.42m3) 703kg (Pod crate #1)

1 x 1220 x 2440 x 1148H (3.42m3) 517kg (Pod crate #2)

CHASSIS/BODY COLOUR SELECTION

C-POD 1-5 PERSON SQUARE POD SERIES 2 - office furniture
C-POD 1-5 PERSON SQUARE POD SERIES 2 - office furniture
C-POD 1-5 PERSON SQUARE POD SERIES 2 - office furniture
C-POD 1-5 PERSON SQUARE POD SERIES 2 - office furniture
C-POD 1-5 PERSON SQUARE POD SERIES 2 - office furniture  5 year warranty for body parts, external mechanism, excluding negligence during or after installation
 C-POD 1-5 PERSON SQUARE POD SERIES 2 - office furniture  2 year warranty for electrical components

The Supplier may make any changes or improvements to the design or specification of the Goods at any time without giving prior written notice to the Purchaser unless otherwise agreed in writing

Additional information

Zones

,

Warranty

5 Year Warranty
Markets

Lead Time

4 – 6 Weeks
