Description

OPTIONS INCLUDE:

OPTION 1 – BARE UNIT – Suitable for an office, meeting/conference room, workplace etc
OPTION 2 – BOARDROOM TABLE (2200 x 700 x 25mm)
OPTION 3 – ”L” SHAPED SOFAS

Technical Specifications:

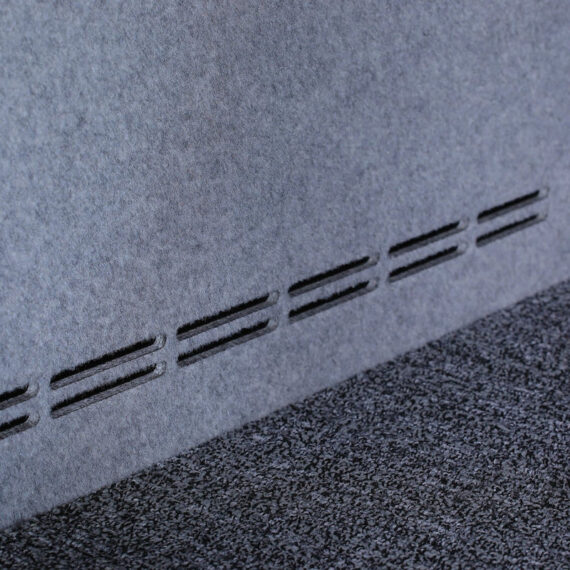

Airflow:Advanced air purification with HEPA filtration – 3 Sets of HEPA filters.Electric Cross flow fans– 31 air changes per hour
DDA Access:Inapod Access pods are available to comply with AS 1428.1 Design for Access & Mobility

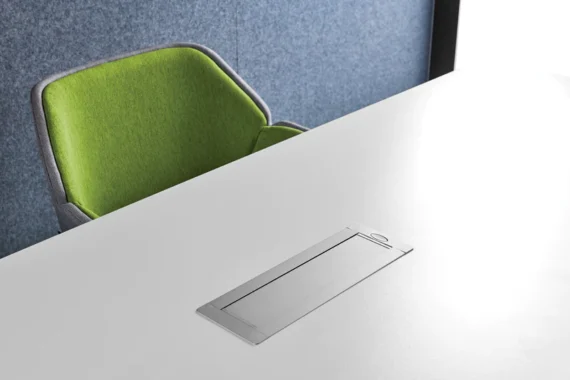

Meeting Pod:Boardroom table size 2200 x 750 x 25mm
‘L’ Lounge Pod:A ‘L’ shaped sofa is available for this model
Auto Door:Automatic self closing door
Door Seal:Magnetic self closing rubber door seal technology
Handle:Redesigned elegant front handle
Sprinkler:Provision for a fire sprinkler head if required with a knock out hole in the ceiling
Door:10mm double laminated glass door

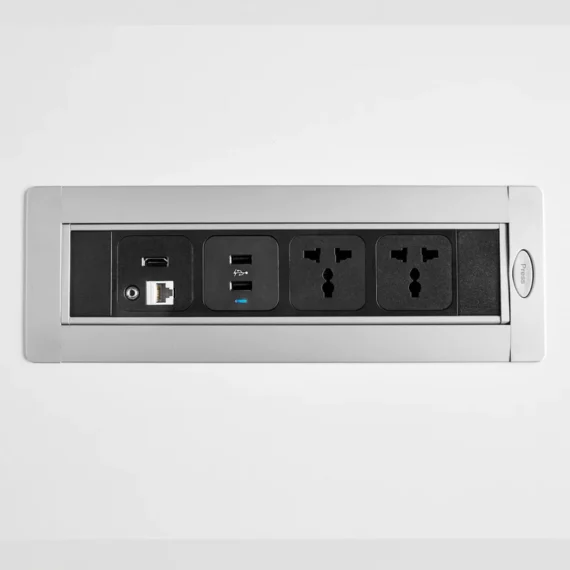

Outlets:Bare Pod=2 x A/C power, 1 x USB-Type C & Cat 6 charging ports
Meeting Pod=2 x A/C power, 1 x USB-Type A & Cat 6 + HDMI & Audio Jack
Sofa Pod=2 x A/C power & 1 x USB-Type C
Lighting18W 12Vdc recessed LED strip with dimmer
Acoustics High acoustic rating – beautifully designed using carefully selected materials with the best
absorption & isolation performance. Weighted Level Difference 28.3dB
Exterior MaterialsStructural strength wall detail: Electro galvanised 1.2mm thick steel – All structural steel construction
Interior Materials Fire rated and tested fabric materials – electro galvanized 1.2mm thick steel with fire rated acoustic board
Fire testsFire Rating: Acoustic Board, Carpet and Polyester Foam Fire Rated. Conforms to all Australian &
overseas Fire tests
SensorAll power functions are activated by an energy saving motion sensor with auto turn off after 5 minutes of inactivity
EnvironmentUL Greengard certified
MobilityNil
LockableElectric lockable door accessed by Q-code and app. (Option)
PowerPower is connected using a standard wall mounted 240V GPO
Weight967kg

External Dimensions: 3000 (4000 & 5000) x 2400 x 2180 high

Shipping Dimensions:

1 x 1220 x 2440 x 1148H (3.42m3) 803kg (Pod crate #1)

1 x 1220 x 2440 x 1148H (3.42m3) 603kg (Pod crate #2)

CHASSIS/BODY COLOUR SELECTION

5 year warranty for body parts, external mechanism, excluding negligence during or after installation

2 year warranty for electrical components

The Supplier may make any changes or improvements to the design or specification of the Goods at any time without giving prior written notice to the Purchaser unless otherwise agreed in writing
